• Made from Polyvinylchloride (PVC) (07)
  • Colour: black
  • Provides support and protection for cables and wires through panels
  • Type F4: adapts to the cable diameter

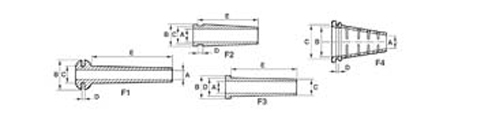

Dimensions
A 9.5
B 15.1
C 12.7
D 3.2
E 35.5
F F2
Basic info
Material Polyvinylcloride (PVC)
Color black

Colour: Colour number:
black599 XXX XXXX XXXXX

Colour definition : jet black
Matches: Reasonably matches RAL colour 9005
Featured colours reserved. Due to the screen differences in colour may occur.
Material:Material number:
Polyvinylchloride (Z-PVC)07 XXX XXXX XXXXX

Product information
Flexible polyvinylchloride is ideal for application in vibration dampers, door buffers or insert feet. The material can very well be glued.

Physical information
PropertyValueDIN
Relative density (gr/cm³)1.4--
Tensile strength (MN/m²)--53455
Elongation at break (%)40053455
Tensile modulus (MN/m²)2053457
Notched impact strength (kJ/m²)--53453
Ball indentation (MN/m²)shore A 7053456
Application temperature (max ºC)80--
Volume resistivity (Ohm.cm)10^1053482
Dissapation factor tan. (10³ Hz)0.153483
Dielectric strength (MV/m)3053481
Coefficient of friction (on steel) (--)----
Chemical resistance
Resistant to
PetrolA
BenzeneC
Mineral oilsB
Vegetable oilsB
Weak alkalisA
Strong alkalisA
Weak acidsA
Strong acidsB

  A = Good
  B = Doubtful
  C = Poor

All information is given in good faith but without warranty


Grommet sleeve [438] (438002559907)

  • Product Code: 438002559907
  • 0.3182€


  • 100 or more 0.3182€
  • 500 or more 0.2256€
  • 1000 or more 0.1741€

This product has a minimum quantity of 100
